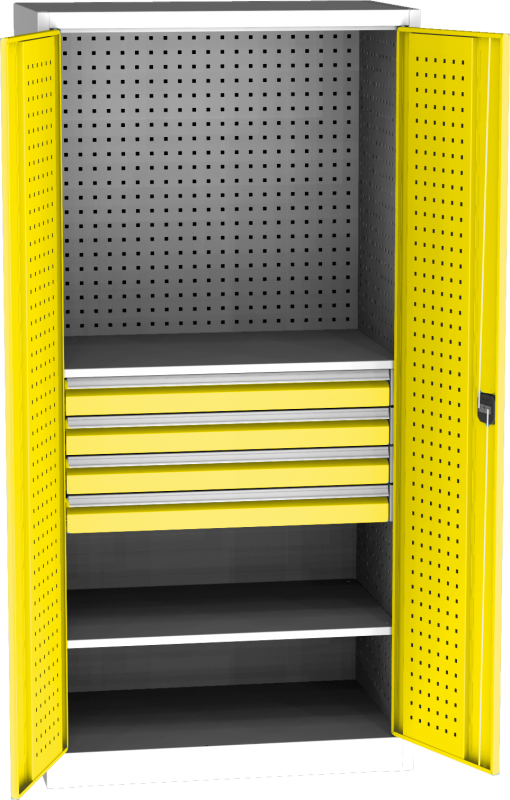

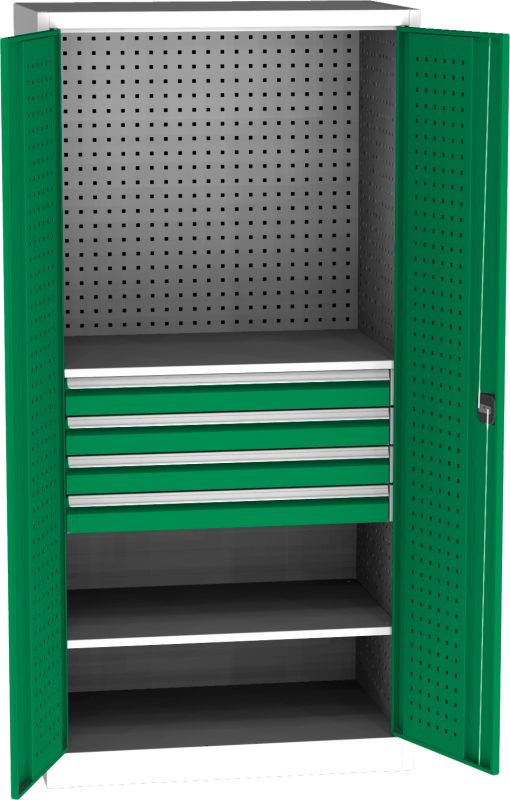

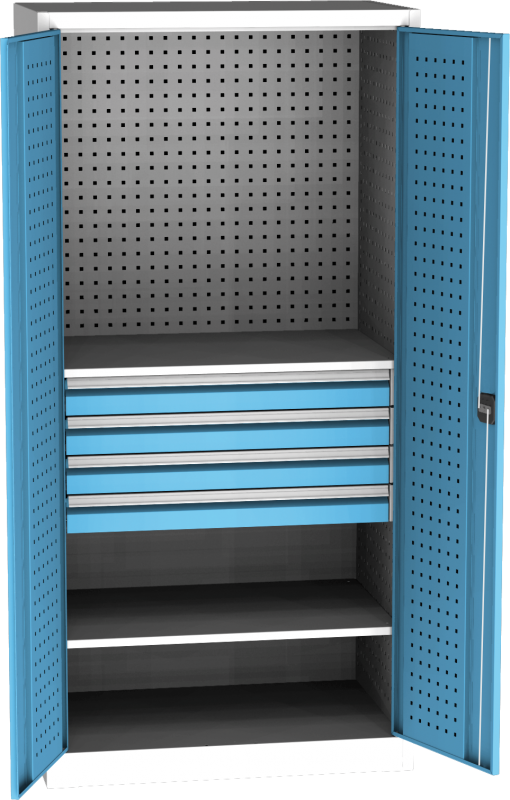

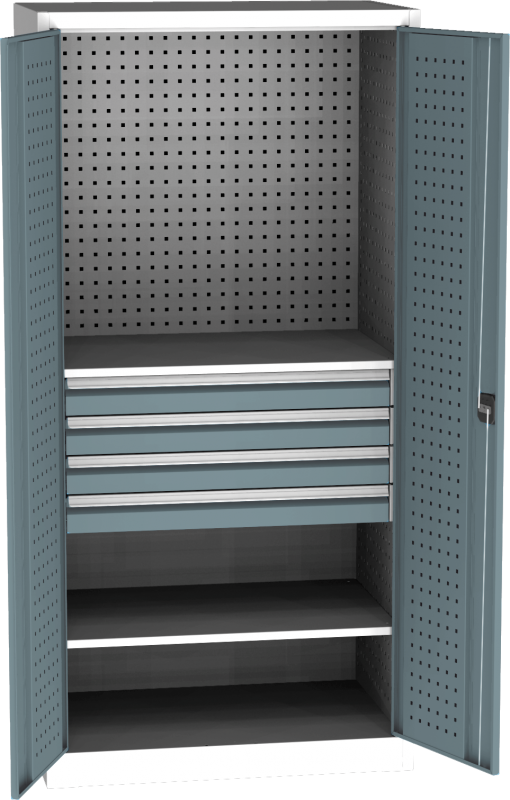

Heavy-duty SPD Universal Workshop Cabinet w/ DVB perforation, 4 drawers, 2 shelves
Colour design at standard prices:
| Height | 1950 mm |
|---|---|
| Width | 950 mm |
| Depth | 600 mm |
| Při koupi 1 ks | 962.47 EUR za ks | |
|---|---|---|
| Buy at least 2 a více ks | 866.24 EUR za ks |
Ušetříte 96.23EUR
|
Door hanging
Internal hinge pins
Doors with internal hinge pins, allow an opening angle of 110°.
Equipment
Shelf for workshop cabinets
Shelf for workshop cabinets - 100kg capacity.
Perforated panel
Part of the product is a perforated panel for tool holder.
Interior division of the drawers
Drawer of the product allows a partition wall built of metal or plastic.
80% drawer extension
80% drawer extension.
Internal layout
Cupboard drawer
Cupboard drawer - 50kg capacity. (SPD, SPP, NCS)
Door types
Reinforced steel doors
Reinforced steel doors - 1mm thick sheet metal doors with perforated interior reinforcement used for hanging QDN series hooks and accessories.
Turning poles mechanisms
Two-point door locking
Two-point door locking, bottom and top.
Door types

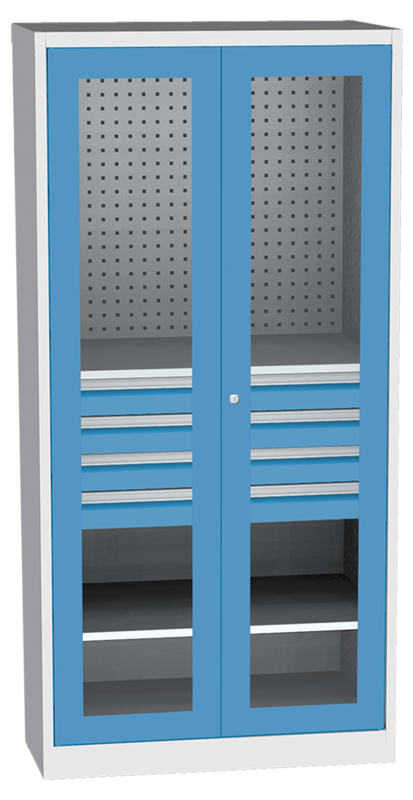

Glass doors
Glass doors - 4mm thick tempered safety glass set in a steel frame.

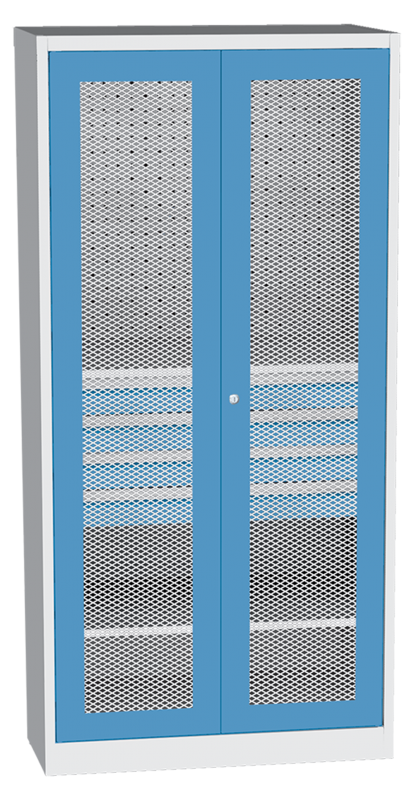

Wire grate doors
Wire grate doors - Panel made of hammered metal wire and powder coated the same colour as the cabinet body. Grate hole size is 22 x 12mm, mounted in a steel frame.
Internal layout
Cupboard drawer
Cupboard drawer - 50kg capacity. (SPD, SPP, NCS)
Equipment
Shelf for SPD_11/12 series workshop cupboards
Workshop cabinet drawer
Základní popis
Heavy-duty SPD series metal cabinet with a heavy load capacity. This cabinet includes 2 adjustable shelves (25mm steps) and 4 adjustable drawers (50mm steps). Compared to SPD_11_A this cabinet has an internal DVB perforation on the inside walls to accommodate the installation of adjustable 95mm drawers (SPD_11_Z). It also comes standard with reinforced doors with an inner perforation for our QDN hooks for hanging various tools/accessories. This cabinet is ideal for production areas, garages, repair shops, testing rooms and laboratories as well as schools and training centers.
Uzávěry/zamykání
- GSB lock, 2 keys, 2000 combinations, possibility of Master Key
- Double-point door locking, top and bottom
Korpus/ skelet
- The Bottom of the cabinet frame is reinforced with metal feet
Vnitřní uspořádání
- 2 x adjustable workshop shelf w/ locking pins - (HxWxD) 20 x 885 x 562mm - (SPD_11_P2)
- Shelves are adjustable (25mm steps)
- 4 x adjustable workshop drawer (HxWxD) 95 x 824 x 432mm - (SPD_11_Z)
- Drawers are adjustable (50mm increments)
- Drawers are installed on a heavy-duty ball bearing slide w/ 85% extension
Dveře
- Steel door with internal perforated reinforcement for hanging tool holders KOVOS - QDN.
- Doors made with 0.7mm thick sheet metal
- Inner pins (hingeless) with 110° angle of openingParameters
Height: 1950 mmWidth: 950 mm
Depth: 600 mm
Weight: 153.5 kg
Počet polic: 2
Nosnost korpusu: 800 kg
Nosnost police: 100 kg
Nosnost zásuvky: 50 kg
Počet zásuvek: 4
