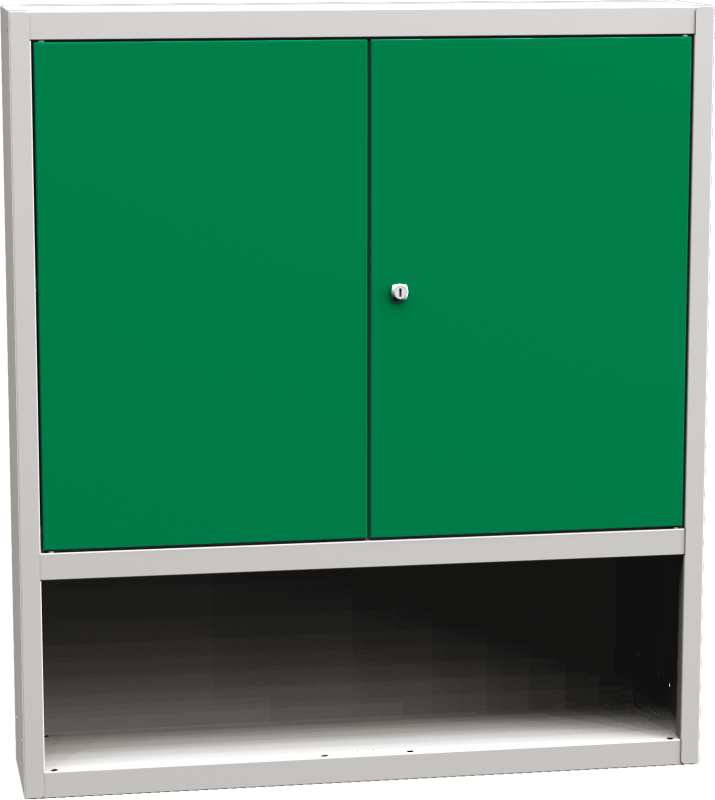

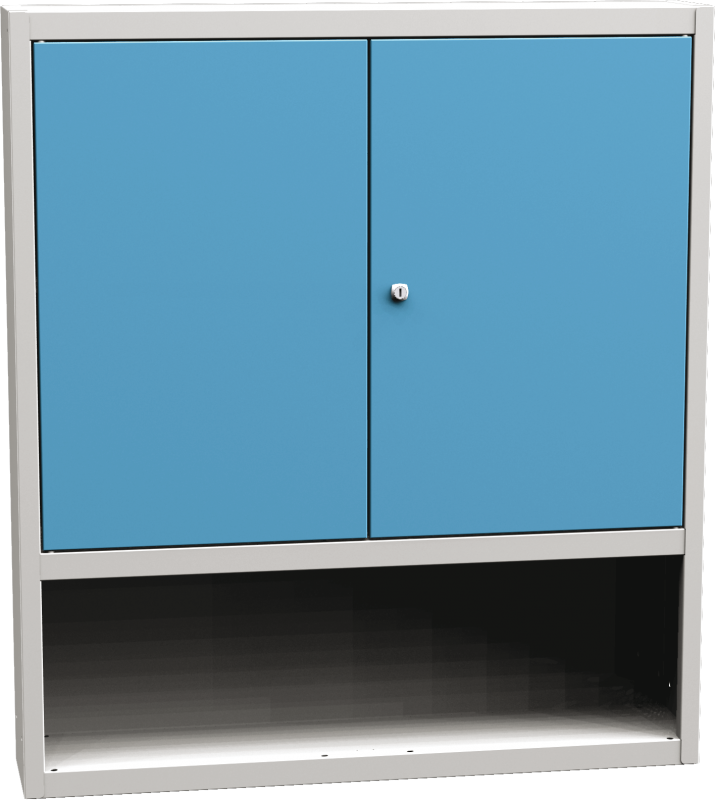

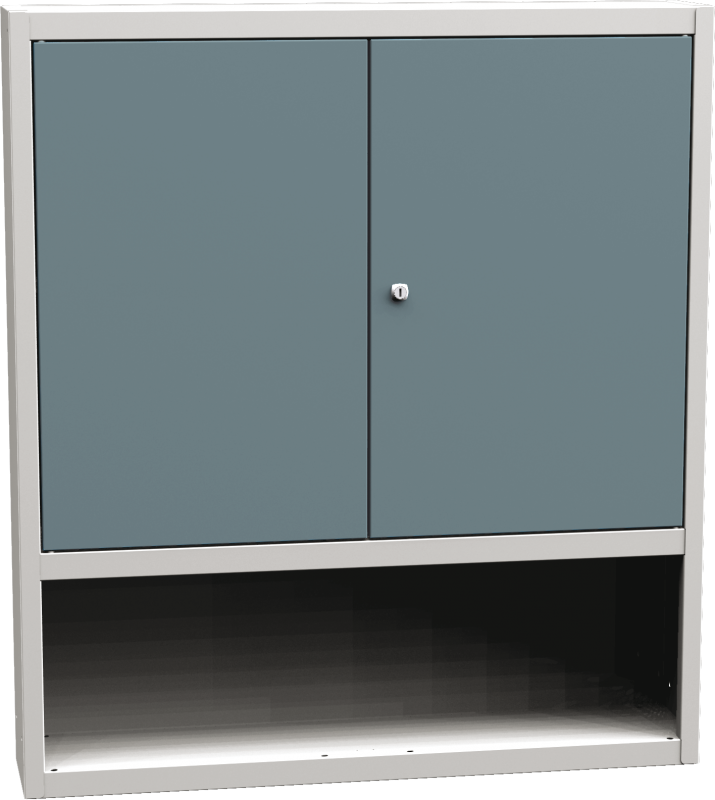

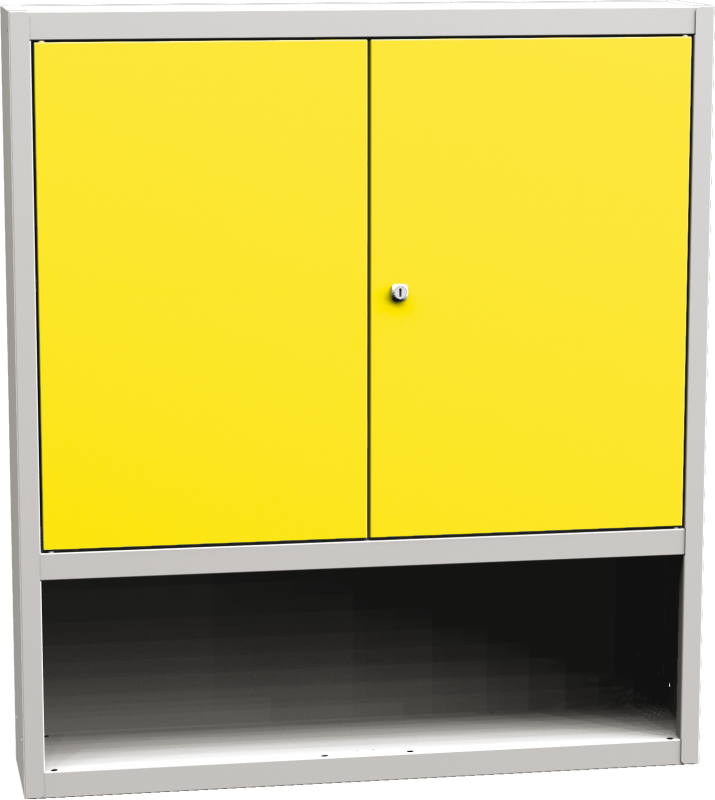

Cabinet extension for workbenches - 2 doors, 1 shelf
Colour design at standard prices:
| Height | 1100 mm |
|---|---|
| Width | 1000 mm |
| Depth | 200 mm |
| Při koupi 1 ks | 243.18 EUR za ks | |
|---|---|---|
| Buy at least 2 a více ks | 218.86 EUR za ks |
Ušetříte 24.32EUR
|
Turning poles mechanisms
Two-point door locking
Two-point door locking, bottom and top.
Door hanging
Internal hinge pins
Doors with internal hinge pins, allow an opening angle of 110°.
Equipment
Shelf for workshop cabinets
Shelf for workshop cabinets - 20kg capacity.
Perforated panel
Part of the product is a perforated panel for tool holder.
Door types
Reinforced steel doors
Reinforced steel doors - 1mm thick sheet metal doors with perforated interior reinforcement used for hanging QDN series hooks and accessories.
Closures / Locking
Cylinder lock C1
Rotary bolt lock for padlock (suitable for shackle thickness 6 mm). The padlock is not included.
Door types
Glass doors
Glass doors - 4mm thick tempered safety glass set in a steel frame.
Wire grate doors
Wire grate doors - Panel made of hammered metal wire and powder coated the same colour as the cabinet body. Grate hole size is 22 x 12mm, mounted in a steel frame.
Turning poles mechanisms
Three-point door locking
Three-point door locking, bottom, middle and top.
Equipment
Shelf for workshop cabinets
Shelf for workshop cabinets - 20kg capacity.
Vnitřní uspořádání
One shelf (DPB_01_P1) w/ 20kg. load rating in cabinet.
Bezpečnost
Two-point door locking, bottom and top.
Uzávěry/zamykání
Cylinder lock, two keys, 2000 combinations, master key delivery possible.
May be rotary bolt lock suitable for shackle diameter 6 mm. The padlock is not included.
Dveře
The inside of the doors and the back side are equipped with 10 x 10 mm perforation in a 38 mm grid to fix the QDN tool holders onto. Door hung on inside pins.Parameters
Height: 1100 mmWidth: 1000 mm
Depth: 200 mm
Weight: 35.2 kg
Počet oddělení / dveří: 2
Počet polic: 1
Nosnost korpusu: 200 kg
Nosnost police: 20 kg
