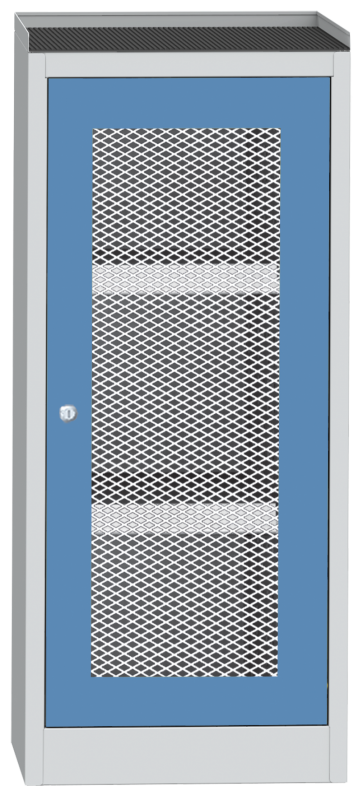

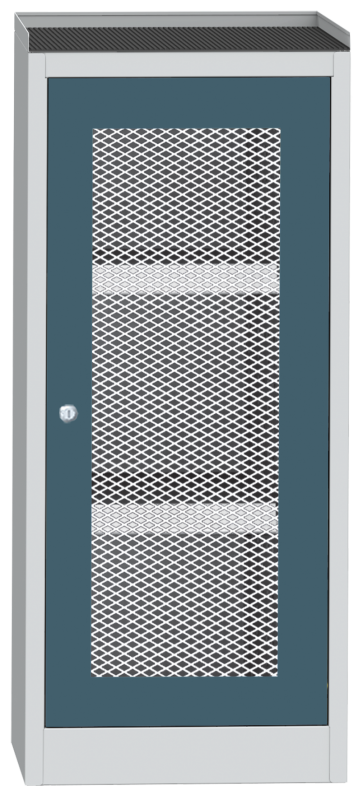

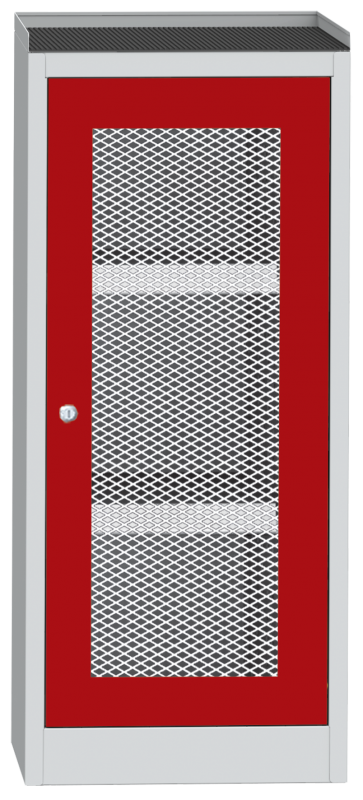

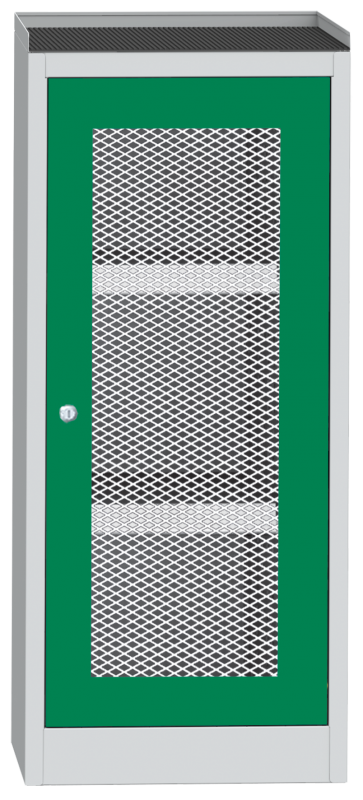

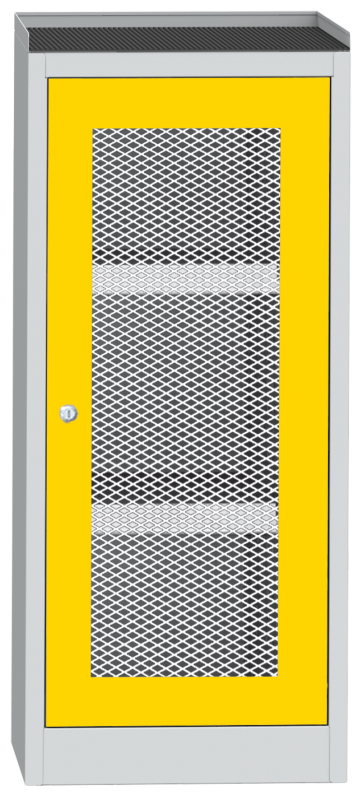

Cupboard for the storage of chemicals
Colour design at standard prices:
| Height | 1180 mm |
|---|---|
| Width | 505 mm |
| Depth | 500 mm |
| Při koupi 1 ks | 362.63 EUR za ks | |
|---|---|---|
| Buy at least 2 a více ks | 326.35 EUR za ks |
Ušetříte 36.28EUR
|
Turning poles mechanisms
Two-point door locking
Two-point door locking, bottom and top.
Door hanging
Internal hinge pins
Doors with internal hinge pins, allow an opening angle of 110°.
Door types
Wire grate doors
Wire grate doors - Panel made of hammered metal wire and powder coated the same colour as the cabinet body. Grate hole size is 22 x 12mm, mounted in a steel frame.
Closures / Locking
Spare rotary bolt lock
Cylinder lock, 2 keys, 2000 combinations, master key available.
Worktop
Beech board 25mm
Heavy-duty 25mm worktop made of square pieces of beech glued together, sanded and treated with linseed oil solution with additives. The upper rims are beveled.
Door types
Glass doors
Glass doors - 4mm thick tempered safety glass set in a steel frame.
Reinforced steel doors
Reinforced steel doors - 1mm thick sheet metal doors with perforated interior reinforcement used for hanging QDN series hooks and accessories.
Closures / Locking
Cylinder lock C1
Rotary bolt lock for padlock (suitable for shackle thickness 6 mm). The padlock is not included.
Základní popis
This cupboard serves to store dangerous liquids. The racks are perforated with drip tray perforated shelves to catch any potential leakage. The doors are perforated at the top and bottom to ensure proper ventilation. These cupboards are made to store water endagering substances such as sprays, paint, thinners, oils, and other non-corrosive liquids.
Uzávěry/zamykání
- Cylinder lock, 2 keys, 2000 combinations, Master Key is available
- Double-point door locking, top and bottom
Další vybavení
Please read the user manual in the download section for more detailed information.
Vnitřní uspořádání

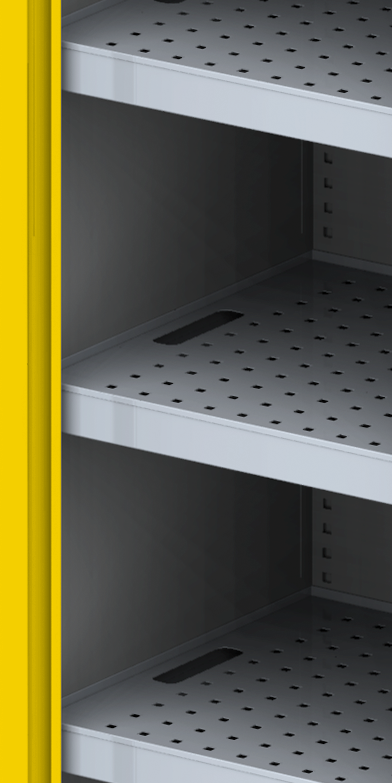

2 x zink plated drip tray shelves with a perforated rack, tray volume 10L / shelf (SCH_VAN_03_PZ)
1 x zink plated drip tray bottom tub without a perforated rack, tray volume 15L (SCH_VAN_04_PZ)
Dveře
- Steel grated doors set within a powder coated steel frame
Parameters
Height: 1180 mmWidth: 505 mm
Depth: 500 mm
Weight: 50.776 kg
Počet polic: 2
Nosnost korpusu: 300 kg
Nosnost police: 60 kg
